- Integrated misalignment catching system enabling multiple robotic connections and disconnections in Space environment
- Fitted with SOURIAU L.I.F. contacts for low operation force and high durability (6000 operations)
- Thermal differential compatibility (between plug and receptacle)
- Deep space environment (Atox) compatibility
- High EMI shielding efficiency
- Easy inspection, maintenance or repair after wiring
Key features and benefits
Description

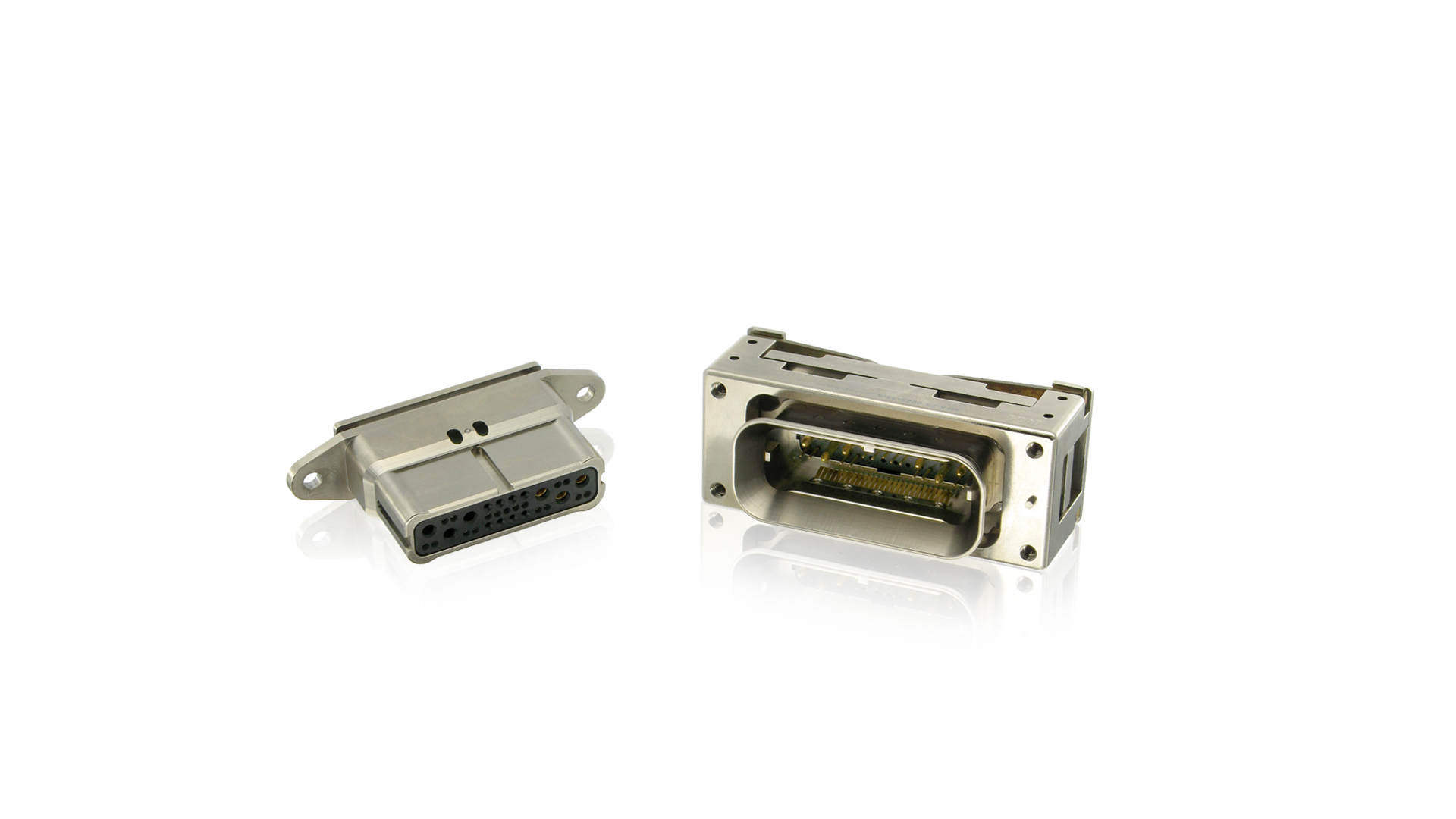

8976 Series is a rectangular interconnect solution designed to perform several robotic operations in Space environment.
Technical Data
Mass
- < 105 g for plug
- < 218 g for ORU receptacle
ORU plug misalignments
- Δα = ± 0,5° (movement around the X axis)
- Δβ = ± 0,5° (angle authorized between the panels)
- ΔY = 1,27mm, ΔZ = 2,03mm (plane movement according to Y and Z requirements)
ORU receptacle overstroke
- ΔX = 2,29 mm
Examples of application field
8976 space grade connectors are rectangular interconnect solution for robotic operations in space.
