MSM Series

High Performance Cable Connector

  • Operating temperature: -55°C + 125°C
  • Durability: UL94V0/ UL94V2
  • 500 mating cycles
  • Connector material: Glass filled phenolic connector shell
  • Cable clamps: stainless steel
  • Sealing: IP40

Key features and benefits

Description

MSM connectors are available with a wide range of sizes and layouts, from 7 to 75 positions.

Guiding pins and sockets, turnable jackscrews, a large choice of cable hoods, pin protection shrouds and discrimination pins make this connector range a truly versatile system to answer all of your needs.

MSM connectors are equipped with jackscrew locking mechanism for a secured connection.

The MSM series had been developed to be compliant with NFF 93426 – HE 621-22 and MIL-C-28478 specifications. The range is also UL recognized (file number: E238675) and UL94-V0 recognized.

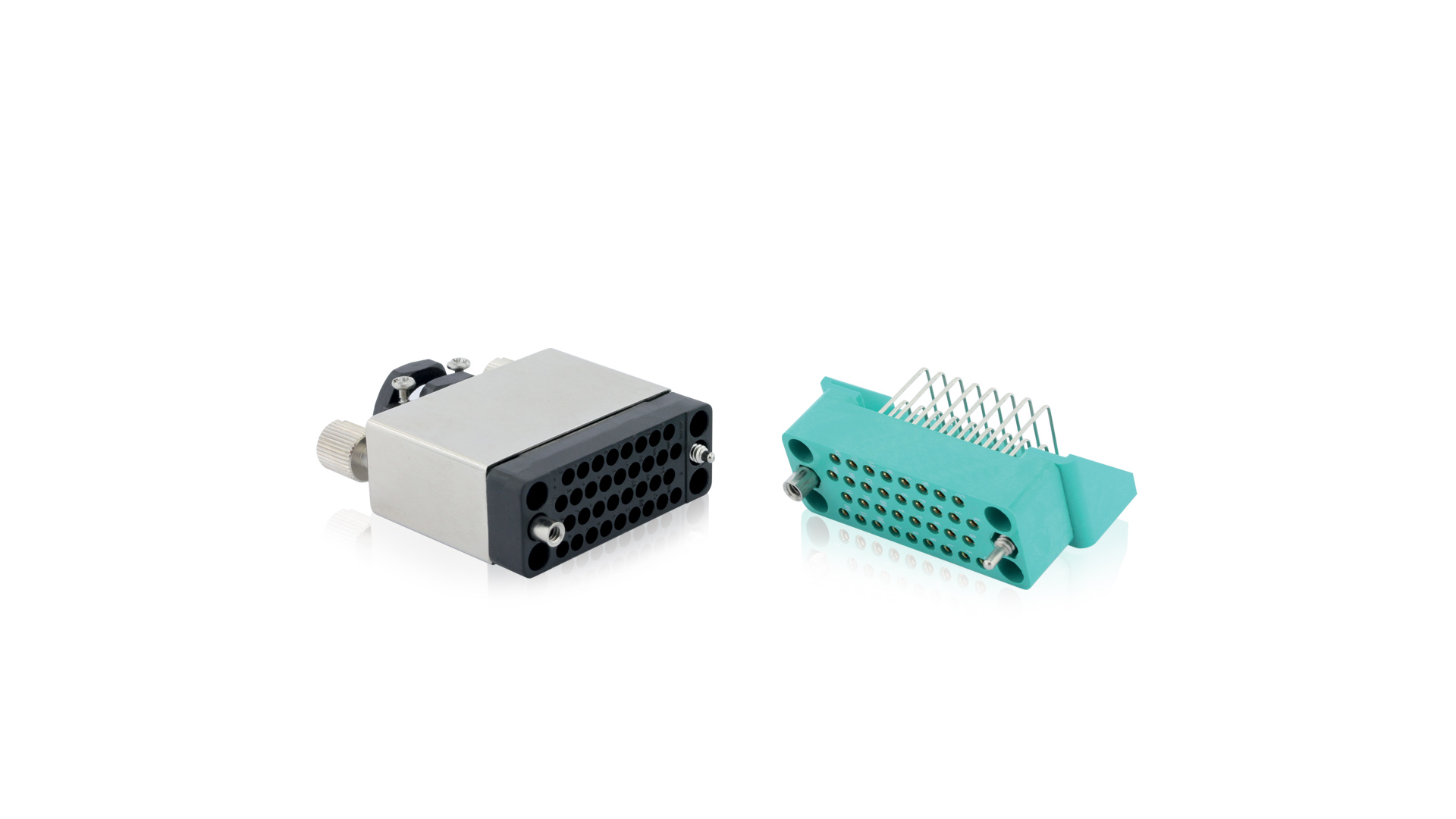

MSM connector series can be connected to a MSO rectangular boardmount connector.

MSM uses the standard #16 Trim Trio contacts. Contacts to be ordered separately according to your cable specification.

In addition, the MSM cable connector series can be offered with a full range of hardware and accessories. Thanks to this large interconnection offer, you will easily find a supplier to complete your interconnect solution.
