- Available in 50 contacts
- Compliant with the vibration and shock conditions of railway signal security components and railway vehicle supplies.
- Contacts: RC/RCS/RM which is proven in the railway industry is available as Common contact.
Key features and benefits
Description

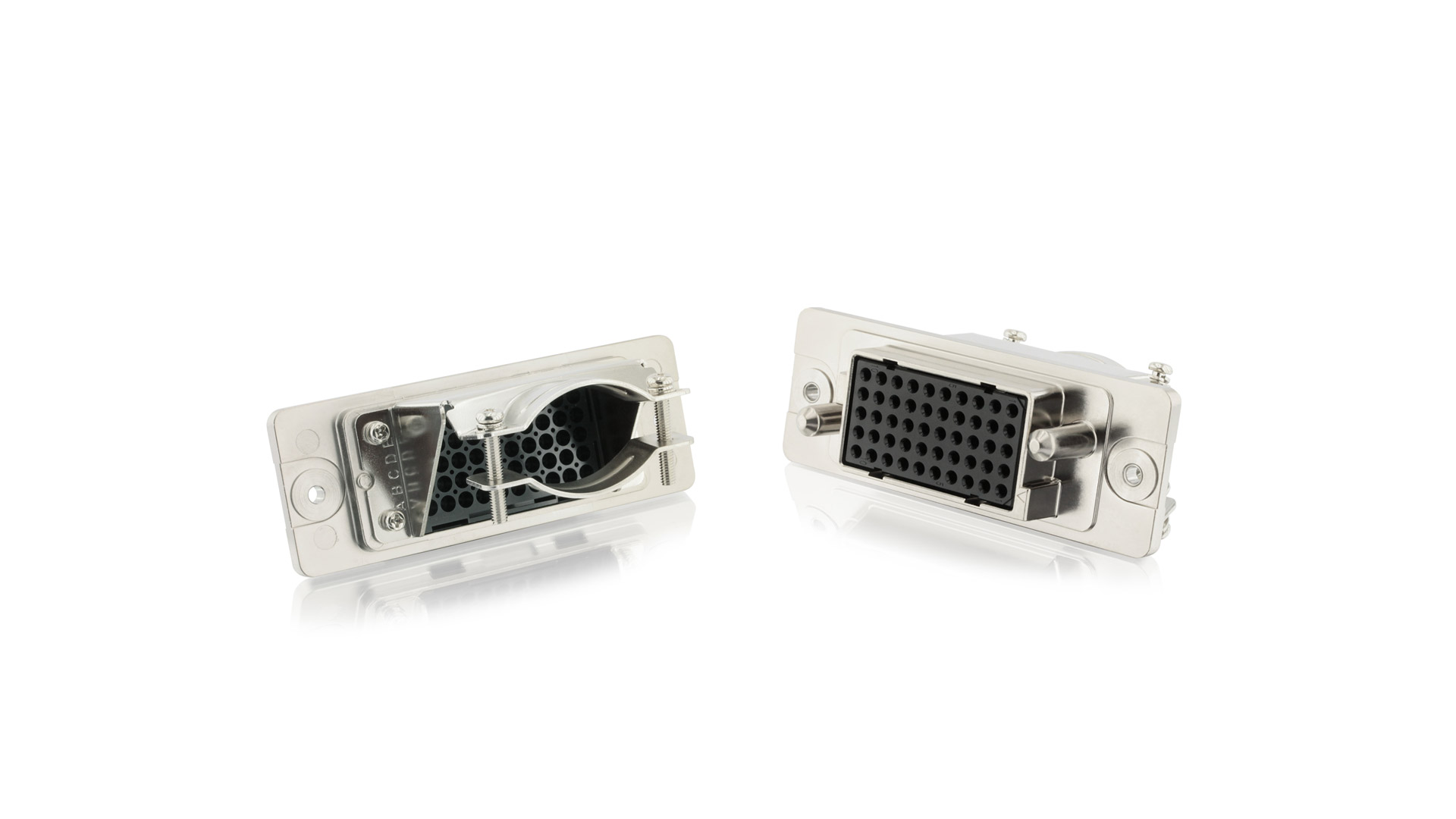

- High reliability and durability brack drawer connector ideal for connecting between units.
- Robust type connector with cable clamp for DRW series.
- Cable clamp can be attached to both plug connector and receptacle connector.
- A ferrite plate can be attached for EMI performance.
- Compliant with the vibration and shock conditions of railway signal security components and railway vehicle supplies.
Technical data
Operating temperature range: -55℃ to +125℃
Rated current: 13A (panel mount)
Contact resistance: 15mΩ Max
Insulation resistance: 5000 MΩ Min
Withstanding voltage: A.C. 2000V (1 minute)
Durability: 500 matings and unmatings
Vibration resistance: JIS-C-0040
Vibration test: JIS-E-3014
Shock test: JIS-E-3015
Dynamic salt spray : JIS-C 0023
Storage temperature/humidity : JIS-C0028
Vibration/Shock: JIS-E-4031
